BSK9R

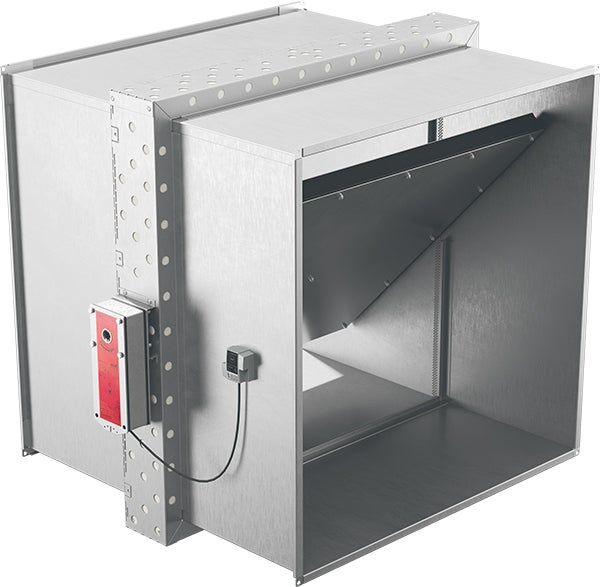

BSK9R is a fire damper fire class EI90/EI90S with regulating actuator. This means it is possible to regulate the air flow from 0-100% with a control signal 2-10 V, use it as an adjustment damper or boosting damper while providing complete protection against the spread of combustion gases.
Quick facts
- Fire class EI90 / EI90S
- Sizes from 200 x 200 mm to 800 x 800 mm
- Prefitted 24 V safety actuator
- Easy flow regulation
- Low weight
- Easy installation
- CE-marked building product in acc. with EN 15650:2010
- Available in MagiCAD
- Contact Bevent Rasch to order this product in other materials
Accessories
-
-
BRTR
Rectangular protective louvre for duct end installation with wire mesh
-
FENIX 0-10V
Used for local modulating of 0-10V modulating fire dampers
-
FENIX+
Slave unit for FENIX4, used to extend with further 4 fire dampers (maximum 3pcs/FENIX4)
-
FENIX2
Monitoring system for up to 2 fire dampers
-
FENIX4
Monitoring system for up to 16 fire dampers
-
R30
Expansion module
-
RCKB-1
Junction box containing 5 terminal blocks
-
RCKD
Duct detector
-
RCRD
Room detector
-
RCRS
Monitoring system for 1 pcs modulating fire damper
-
RCTC
Central unit
-
RCTU
Damper module
