RABRR

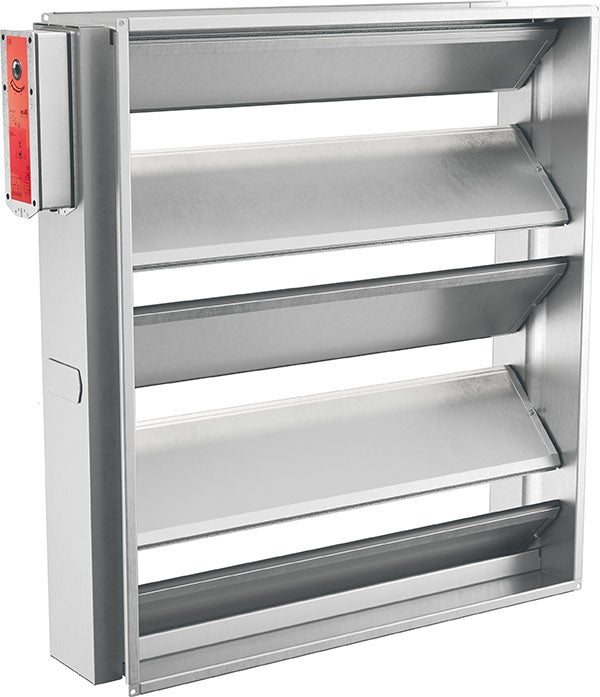

RABRR a fire damper, fire class E60S /E90S /E120S with modulating actuator. This means it is possible to regulate the air flow from 0-100% with a control signal 2-10V, use it as an adjustment damper or boosting damper while providing complete protection against the spread of combustion gases.

Quick facts

Fire resistance class E60S / E90S / E120S
Sizes from 200 x 200 mm to 1500 x 1500 mm
Prefitted safety actuator 24V
Slip joint connection or Flange connection
Installation in horizontal duct up to size 800 x 800mm
Installation against wall/joist structure up to size 1500 x 1500mm in combination with wall penetration RBVG
Easy flow regulation
Available in MagiCAD
CE-marked building product in accordance with 15650:2010
Contact Bevent Rasch to order this product in other materials.
