RABCR

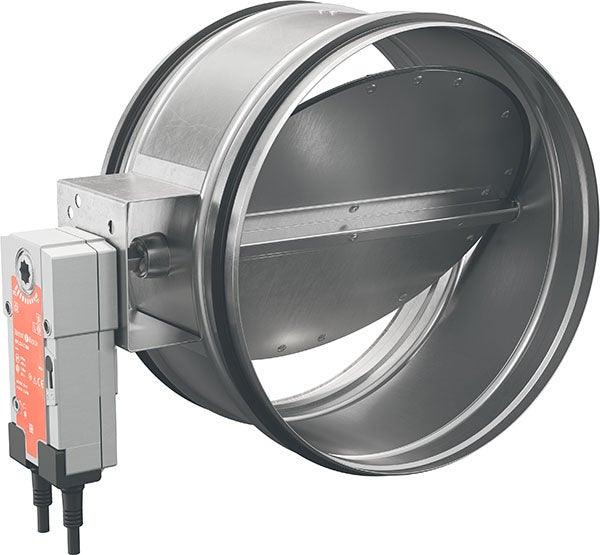

RABCR is a circular fire damper E60/E120-S with modulating actuator.This means the air flow can be adjusted with the damper blade angle 0-100% via input signal 2-10 V. It can also be used as adjustment damper or control damper and have a complete fire function at the same time.
Quick facts
- Fire resistance class E60 / E120S
- Full protection against the spread of combustion gas
- Sizes from 100 mm to 630 mm
- Prefitted regulating safety actuator 24V
- Installation in ducts
- Easy regulation of flow
- Available in MagiCAD
- CE-marked building product according to 15650:2010
- Contact Bevent Rasch to order this product in other materials.
Accessories
-
-
BRRM
Measuring unit
-
FENIX 0-10V
Used for local modulating of 0-10V modulating fire dampers
-
FENIX2
Monitoring system for up to 2 fire dampers
-
FENIX4
Monitoring system for up to 16 fire dampers
-
FENIX+
Slave unit for FENIX4, used to extend with further 4 fire dampers (maximum 3pcs/FENIX4)
-
R30
Expansion module
-
RCKB-1
Junction box containing 5 terminal blocks
-
RCKD
Duct detector
-
RCRD
Room detector
-
RCRS
Monitoring system for 1 pcs modulating fire damper
-
RCTC
Central unit
-
RCTU
Damper module
