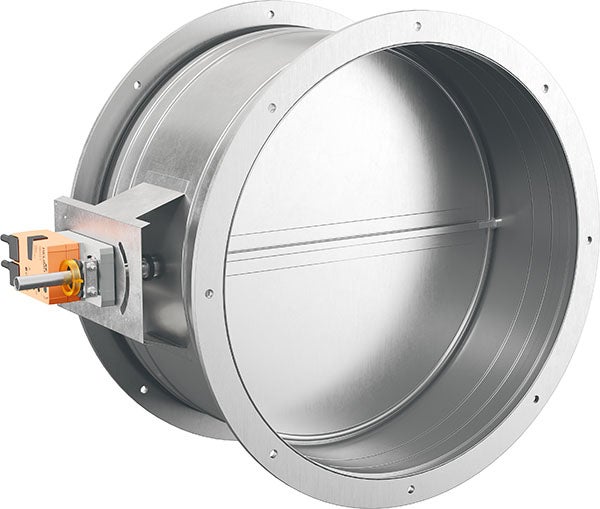

BRTB

Single blade damper with spiro- or flange connection.

Quick facts

  • Pressure class B < 2500Pa
  • Air tightness class 1-4
  • Sizes Ø100-Ø630
  • Galvanized sheet steel or Stainless steel
  • Spiro or flange connection
  • Service temperature max. 70 alt. 225°C (Air tightness class 1 and 2 only)
  • Prepared for external insulation with max. thickness 50 mm
  • Complete with bracket intended for actuator or with fitted lever control or actuator
  • Available in MagiCAD and Cadvents database
  • Contact Bevent Rasch to order this product in other materials
