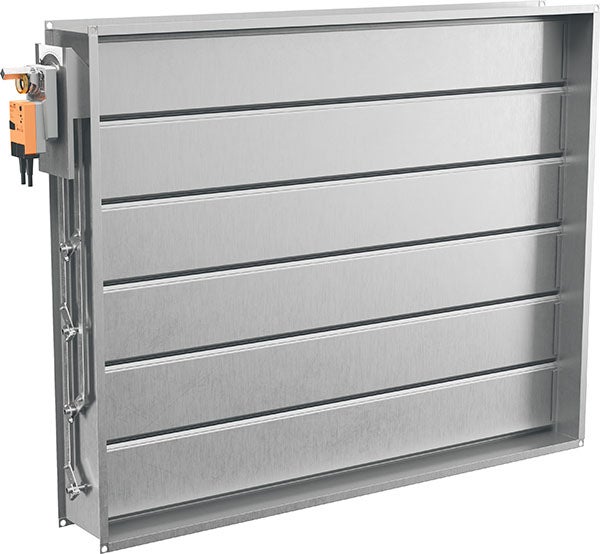

BRJB with slide- and/or flangeconnection and oppsite blades.

Quick facts

  • Pressure class B < 2500Pa
  • Air tightness classes 1-4
  • Sizes 200-200 to 2000-2000
    Larger dampers can be built in modules
  • Available with insulated damper blades
  • Galvanized sheet steel or stainless steel.
  • Spigot or flange connection
  • Max temperature 70 alt. 225 (only air tightness class 1)
  • Available with protected linkage at isolated air ducts
  • Complete with bracket intended for actuator or with fitted lever control or actuator
    (Actuator to be ordered separate)
  • Available in MagiCAD
